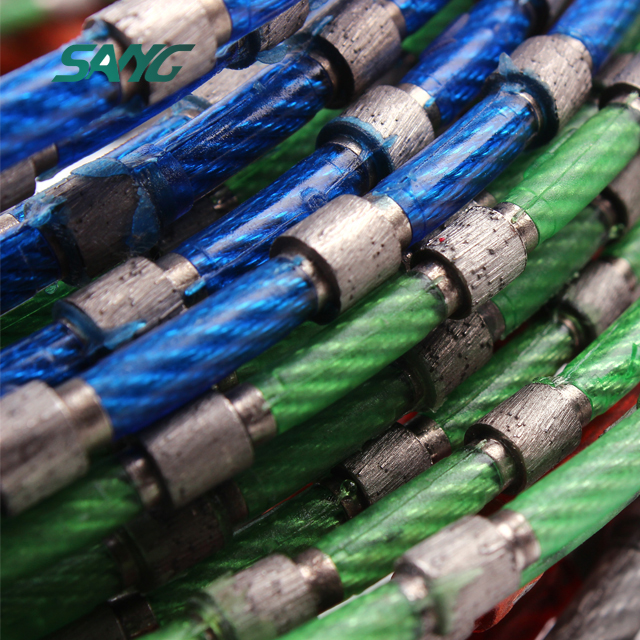

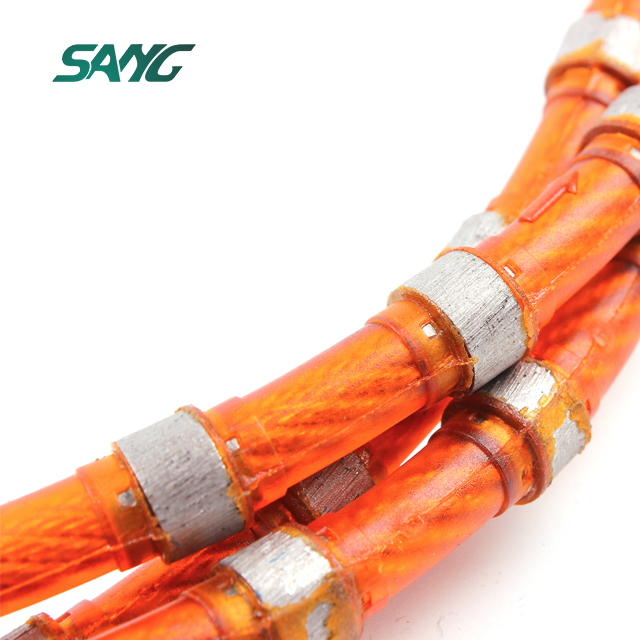

D11.5mm Diamond wire saw for cutting stone
Suitable for working on Quarry,Stationary,Multi-and profile wire saw machines. Extra Diameter(mm): 11.5/11/10.5/9/8.8/8.5/8.2/8/7.5/7.3/6.6mm,etc. Used for cutting stone and construction materials.
Specifications of Products:
Suitable for working on Quarry,Stationary,Multi-and Profile wire saw machines.
Used for cutting stone and construction materials.
Brand:
SANGItem No.:
SGWSPrice:
$15.9/meterProduct origin:
Fujian,ChinaColor:
RegularShipping port:
Xiamen,Guangzhou PortLead Time:
7-15 days after paymentService:
OEM,ODM,Visualization ServiceMOQ:
10m
Product Description:
Product Information:
| Item No. | Application | Coating | Diameter(D/d mm) | Wire Beads(pcs/m) | Hardness | Wire Speed(m/s) | Cutting Speed,㎡/h | Life,㎡/m |
| SGWS-GQ115 | Granite Quarry | Rubber | 11.5/4.9 | 40 | Soft | 30-35 | 15-30 | 20-35 |
|
Medium |
25-30 | 10-25 | 20-30 | |||||
| Hard | 20-25 | 3-10 | 7-15 | |||||
| SGWS-MSQ11 | Marble Quarry | Spring |
11/4.9 |
28 |
Soft |
30-35 | 8-12 | 30-60 |
|
Medium |
28-30 | 6-8 | 20-25 | |||||
|
Hard |
25-28 | 3-6 | 15-20 | |||||
| SGWS-GS105 | GraniteSquaring | Plastic |
10.5/4.9 |
37 |
Soft |
28-30 | 3-6 | 30-40 |
|
Medium |
23-26 | 2-4 | 25-30 | |||||
|
Hard |
20-25 | 1-2 | 20-25 | |||||
| SGWS-MS105 | MarbleSquaring | Plastic |
10.5/4.9 |
33 |
Soft |
30-35 | 1.0-2.0 | 15-20 |
|
Medium |
25-28 | 0.8-1.5 | 10-15 | |||||
|
Hard |
22-25 | 0.5-1.0 | 8-12 | |||||
| SGWS-GS88 | GraniteProfilling | Plastic |
9(8.8)(8.5)/4.78.2/3.6 |
37 |
Soft |
25-28 |
1.0-2.0 |
15-20 |
|
Medium |
22-25 |
0.8-1.5 |
10-15 |
|||||
|
Hard |
20-23 |
0.5-1.0 |
8-12 |
|||||
| SGWS-MS85 | MarbleProfilling |
Plastic |
8.8(8.5)/4.7 |
33 |
Soft |
30-35 | 3-6 | 35-40 |
|
Medium |
25-28 | 2-4 | 25-35 | |||||
|
Hard |
23-25 | 1-2 | 15-25 | |||||
| SGWS-GM63 | Granite Muliti-cutting |
Plastic |
8.0(7.5)(7.2)/3.66.3/ |
37 |
Soft |
25-28 | 1.0-2.0(Pcs No.) | 15-20 |
|
Medium |
22-25 | 0.8-1.5(Pcs No.) | 10-15 | |||||
|
Hard |
20-23 | 0.5-1.0(Pcs No.) | 8-12 | |||||
| SGWS-RC105 | Reinforced Concrete |
Rubber+Spring |
10.5/4.9 |
40 |
Soft |
22-25 | 2.0-5.0 | 2.0-6.0 |
|
Medium |
18-22 | 1.0-2.5 | 2.0-3.0 | |||||
|
Hard |
12-15 | 1.0-2.0 | 2.0-3.0 |
Our Advantage:
Product Packing:
Recommend Product:

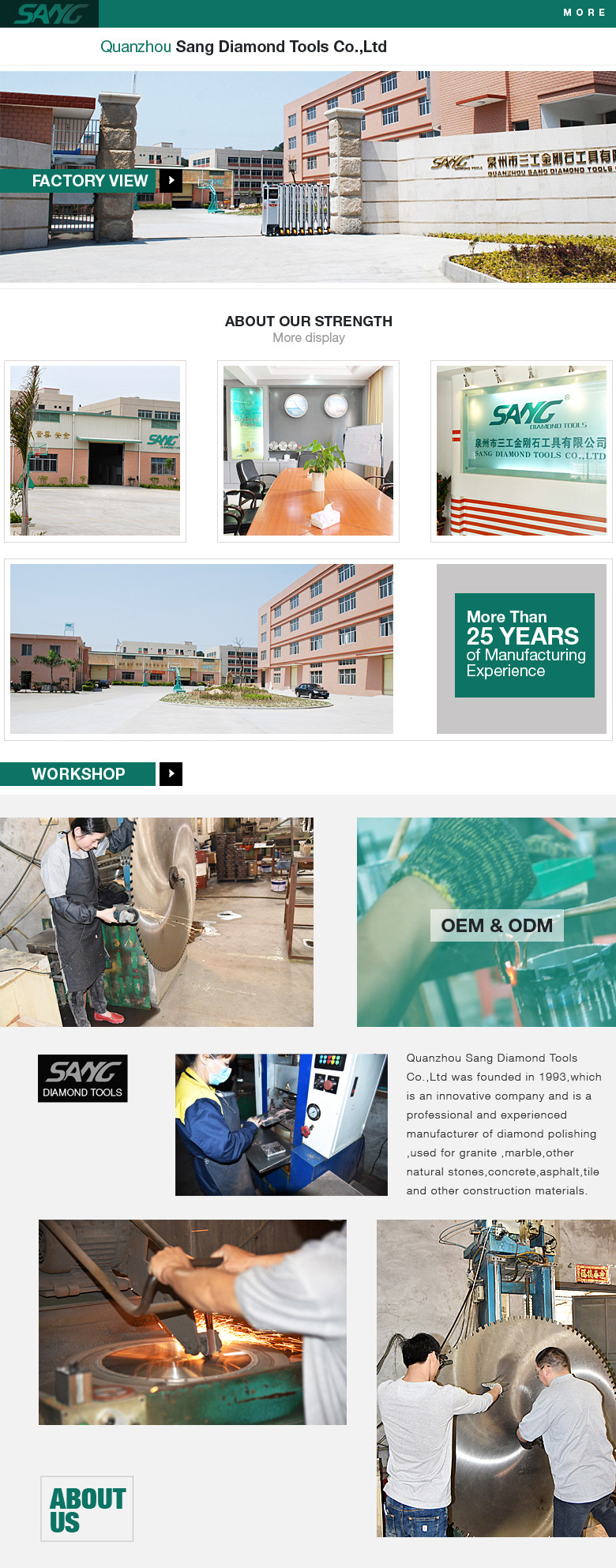

Company Information:
