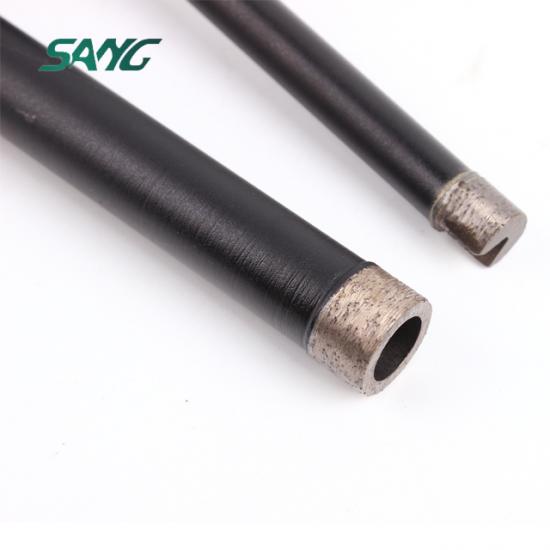

10mm diamond core bit for stone
Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.
Wet core drill bits with high diamond concentration and quality, for a faster coring and longer life. Perfect for drilling:
Brand:
SANGItem No.:
CD63L60SPayment:
100% TT in advancePrice:
$30/pcsProduct origin:
QuanzhouColor:
BlackShipping port:
XiamenLead Time:

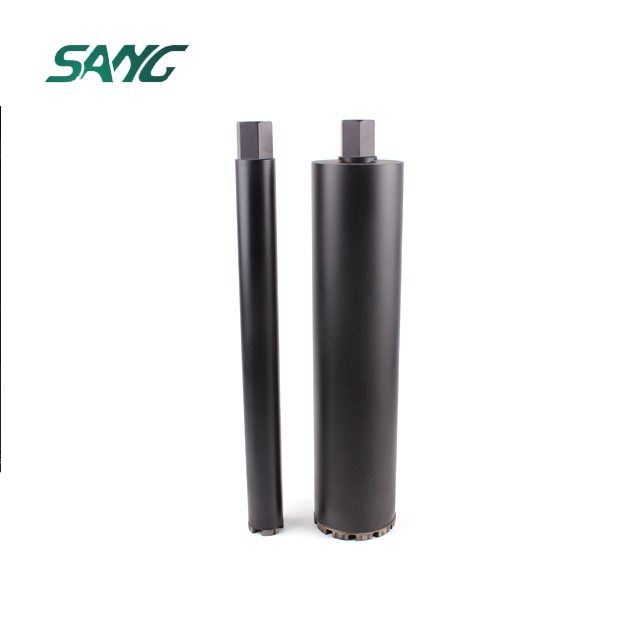

7 daysD63mm diamond core drill for Masonry
advantage:
1). expedient drilling speed
2). optimum footage
3). stable drilling
4). good quantity drilling holes
More Specifications, for stone and concrete separately
Product Description:
| Diamond Core Drill | |||||
| Out Diameter | Working Length | Segment Hight | |||
| (mm) | (inch) | (mm) | (inch) | (mm) | (inch) |
| 25 | 0.98 | 60 | 2.36 | 8 | 0.31 |
| 30 | 1.18 | 60 | 2.36 | 8 | 0.31 |
| 35 | 1.38 | 60 | 2.36 | 8 | 0.31 |
| 40 | 1.57 | 60 | 2.36 | 8 | 0.31 |
| 45 | 1.77 | 60 | 2.36 | 8 | 0.31 |
| 50 | 1.97 | 60 | 2.36 | 8 | 0.31 |
| 55 | 2.17 | 60 | 2.36 | 8 | 0.31 |
| 60 | 2.36 | 60 | 2.36 | 8 | 0.31 |
| 70 | 2.76 | 60 | 2.36 | 8 | 0.31 |
| 75 | 2.95 | 60 | 2.36 | 8 | 0.31 |
| For drilling stones, concrete and brick walls, etc. | |||||
Big diameter core drill with more working length:
|
Diameter (mm) |
working length 1 (mm) |
working length 2 (mm) |
working length 3 (mm) |
segment height (mm) |
connections |
| 82 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 92 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 100 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 112 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 122 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 127 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 152 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 178 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 200 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 225 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 252 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 300 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 305 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 352 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 400 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 450 | 360 |
400 |
450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 505 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 550 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
| 600 | 360 | 400 | 450 | 10 | 1-1/4",5/8-11" G1/2" M14 M16 |
customized specification is available.
Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.
SANG diamond drill bit used for drilling reinforced concrete, asphalt, brick and air-cured refractories.
Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.
For drilling reinforced concrete, asphalt, brick and air-cured refractories. Universal wet drilling core bits are used for drilling machines. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment. Type of thread: Straight shank; 5/8"-11; M14; UNC 1 1/4"-7; Gas 1/2; 3/4"-6.

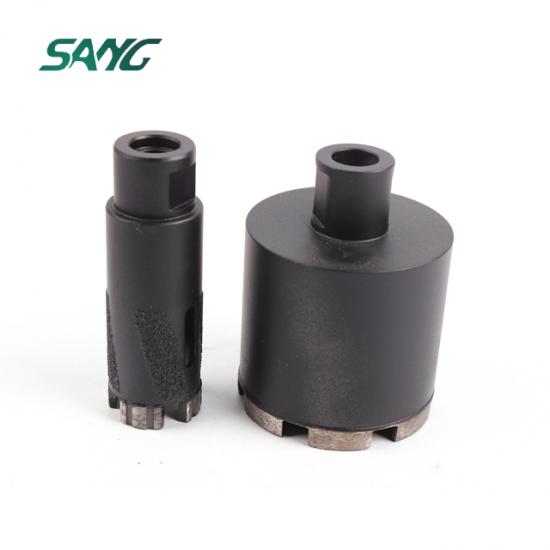

DRY/WET CORE BIT – Aggressive segment turbo rim design for speed and durability – Side diamond protection facilitates any necessary boring – Can be used dry or wet for longer life – Thread M14 5/8”-11 Diameter: 32mm( 1-1/4") 35mm(1-3/8")
Diameter:35mm,40mm,etc Type of thread: 5/8"-11; M14; Gas 1/2,etc. For drilling granite,sandstone, basalt,etc. Type of segment: flat segment, ∧ segment and ∨ segment, turbo segment.
