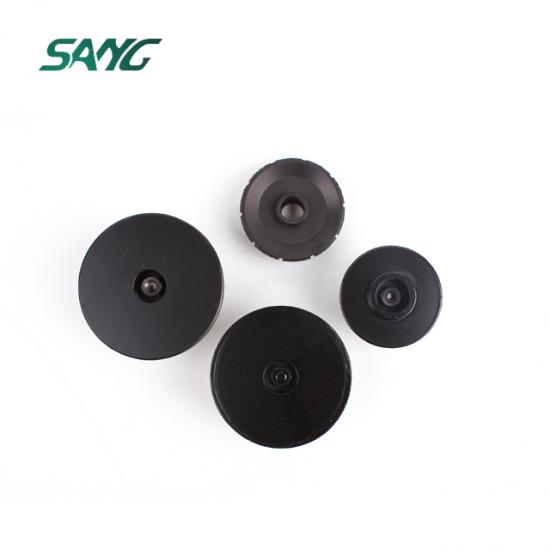

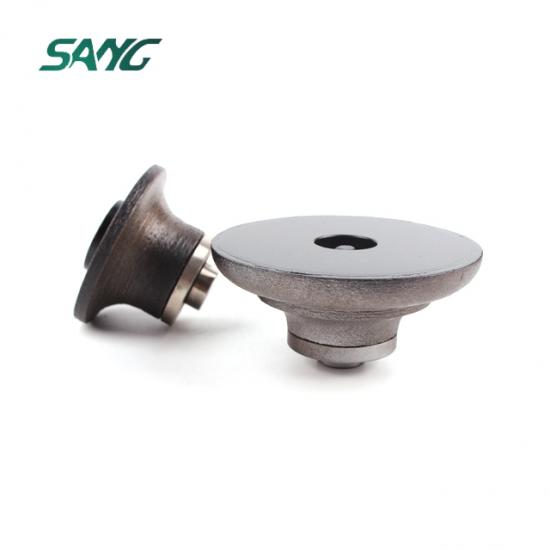

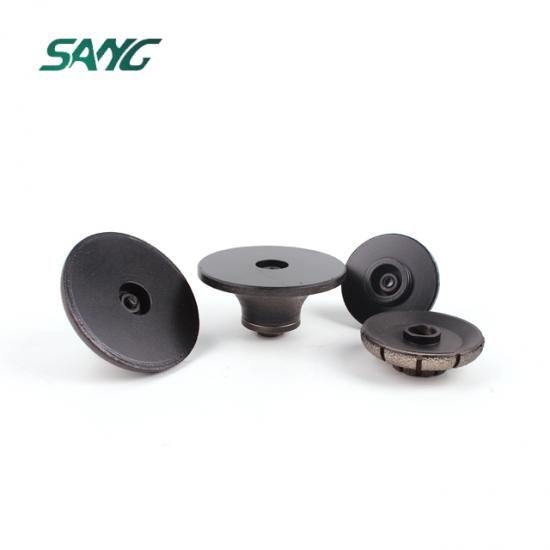

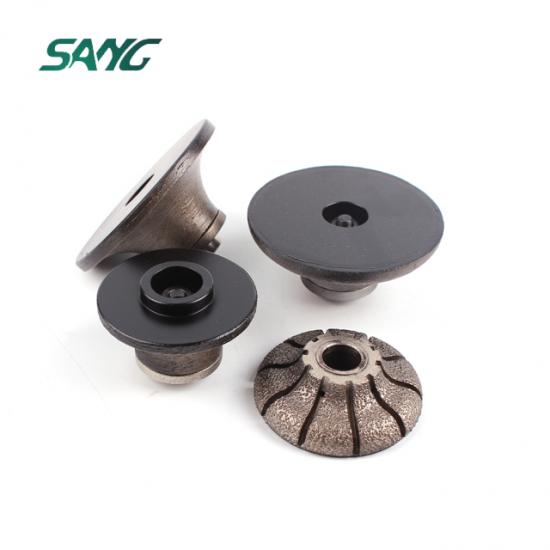

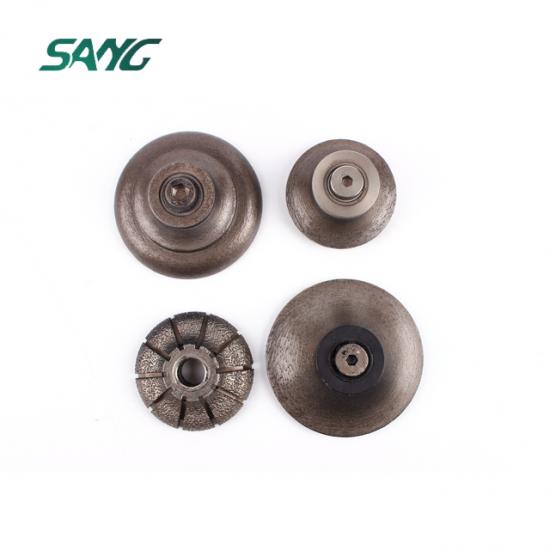

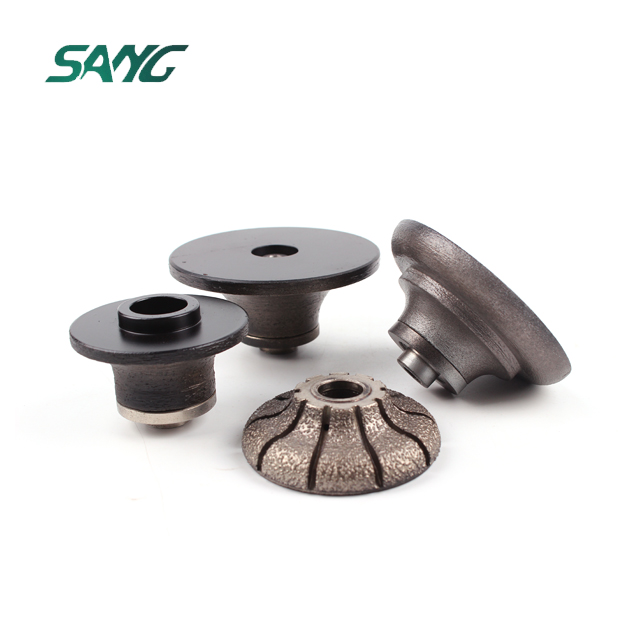

Router bits CNC
Use for CNC machine Thread type: M8,M10,M14 Fit on granite and marble stone.
Use for CNC machine
Thread type: M8,M10,M14
Fit on granite and marble stone
Brand:
SANGItem No.:
SGPW-SBPayment:
TT100%,Western Union,Paypal,Money Gram,etcPrice:
$50/pcProduct origin:
Quanzhou, Fujian, ChinaShipping port:
Xiamen or Guangzhou PortLead Time:
7~10 days after payment recievedMOQ:
20pcselectroplated CNC diamond profile wheel diamond grinding tools for hand machine
Quick Details
| Product name | Router bits CNC |
| Use for | CNC Grinding machine |
| Relative word | the router bits; router bit bullnose; router bit half round |
| Material | Diamond powder |
| Shippment | By courier,by air,by sea |
| Technology | Hot press,sinterd,welding technology |
| Supply Ability | 10000 Pcs/Month |
| Certificate | ISO,SGS |
| Factory | More than 26 years experience |
| Delivery time | 7~10 days after payment recieved |
Product Description
Equipped with rotary toucher to set the depth of cut, as well M8, M10, M14 bolts for various machines.
| Item No. |
Diameter
(mm)
|
Processing Thickness (mm) | Shape Type | Application |
| SGPW-SA | 65 | 20 | A |
7 PCS/SET
For granite:
POS1: Segmented
POS 2,3,4
Continued (sintered)
POS 5,6,7: Resin
For Marble:
POS1: Segmented
POS 2,3,4: Continued
(electroplated)
POS 5,6,7: Resin
|
| 75 | 30 | |||
| 85 | 40 | |||
| SGPW-SB | 85 | 20 | B | |
| 90 | 25 | |||
| 105 | 30 | |||
| 125 | 40 | |||
| SGPW-SE | 75 | 20 | D | |
| 90 | 30 | |||
| 90 | 40 | |||
| SGPW-SF | 80 | 20 | F | |
| 90 | 25 | |||
| 100 | 30 | |||
| 120 | 40 | |||
| SGPW-SH | 70 | 20 | H | |
| 90 | 30 | |||
| 100 | 40 | |||
| SGPW-SL | 60 | 20 | L | |
| 70 | 30 | |||
| 80 | 40 | |||
| SGPW-SO | 75 | 20 | O | |
| 80 | 25 | |||
| 90 | 30 | |||
| 110 | 40 | |||
| SGPW-SQ | 80 | 20 | Q | |
| 90 | 25 | |||
| 100 | 30 | |||
| 120 | 40 | |||
| SGPW-ST | 50 | 20 | T | |
| 55 | 30 | |||
| 60 | 40 | |||
| SGPW-SV | 65 | 20 | V | |
| 80 | 30 | |||
| 90 | 40 | |||
| 100 | 50 | |||
| 110 | 60 |
Above data is used for reference; Various specification and shapes on request available.
Contact us
Avril
Mob/whatsApp/Wechat: 0086 18160921051
E-mail: sell@sangtools.com
FAQ
1.Are you a manufacturer or trading company?
We are a 26 years manufacturer.
2.How to prove your quality?
We use E6 diamond,Dipea steel wire, passed ISO9001 and SGS,strict quality control and skilled workers.
3.What should I do if the products is not suitable for the market?
Giving us the detailed report first,then we analyze the reason,try to find the solutions.
If it is our problems,we will give you new products.
4.Do you provide free samples?
Small sample is welcomed.But,usually we don't provide free samples.
5.Can you provide OEM/OEM services?
It is ok.
6.Any question about electroplated CNC diamond profile wheel diamond grinding tools for hand machine, please kindly let me know! Thanks!
Use for CNC machine Thread type: M8,M10,M14 Fit on granite and marble stone.
SANG diamond fickert are selling well in Russia,India,Brazil.
1,Longevity 2,Faster Cutting 3,Improved Performance 4,Reduced Chipping 5,Reduced Vibration
Very powerful PCD specialized grinding wheel Very well suited for roughening and grinding flexible protective coatings, adhesives and sealants. Removing latex and oil paints, bitumen, PU/polyurethane, epoxy and flexible glues. Milling lime and gypsum plaster. Roughening synthetic resin plaster and hard cement plaster. Fast and effective material removal without sticking, thanks to PCD (poly-crystalline diamond) segments Maximum working speed 80 m/s The machine shown may differ in equipment and technical details depending on the configuration. Kindly pay attention to delivery scope and product description. Accessories included only if listed in the delivery scope.
Fast cutting without chipping
Use for portable grinding machine and special retread equipment. Use for chamfering,beveling and grinding stone and concrete edge & surface. Grit size:36#,46#,60#,80#,100#,120#,200#,as customized. There is universial connection from φ15(22.23mm/M14)
