In a century-old steel mill in Germany's Saarland, crews overhauling a VOD furnace ran into a stubborn problem: cutting through its magnesia-calcia brick lining. "These bricks are so dense we could barely cut 5 cm per minute," reported the team. "The blade temperature kept rising, risking damage if we continued."

This challenge is common in high‑temperature industries. Magnesia‑carbon and magnesia‑calcia bricks are essential for kilns, furnaces, ladles, and AOD/VOD vessels due to their heat and corrosion resistance. Yet their extreme hardness and density cause ordinary diamond blades to wear quickly, overheat, and cut slowly.

Building on over 30 years of expertise, Quanzhou Sang Diamond Tools has developed the SANG Refractory Brick Cutting Blade—a benchmark product that combines specialized materials, innovative design, and advanced technology. Delivering efficient, durable, and reliable performance, it has become the trusted choice for professionals worldwide.

1.Core Product Advantages

1) Specially Designed Segment Formula–Sharper and More Durable Cutting

• Premium Diamond Selection: Instead of common industrial diamonds, we use high-grade diamond crystals with superior structural integrity and thermal stability.

• Exclusive Bond Formula: Our proprietary metal bond formulation is precision-engineered to wear controllably during cutting. This allows the blade to consistently expose fresh, sharp diamond edges—like "shedding its outer layer"—ensuring sustained cutting performance.

• Vacuum Hot-Press Sintering Process: Sintered under high temperature (over 800°C) and high pressure in a vacuum environment, this process creates a strong metallurgical bond between the diamonds and the bond matrix. Internal tests show over 15% higher bending strength and significantly reduced early diamond loss, extending overall blade lifespan by more than 30% compared to conventional blades.

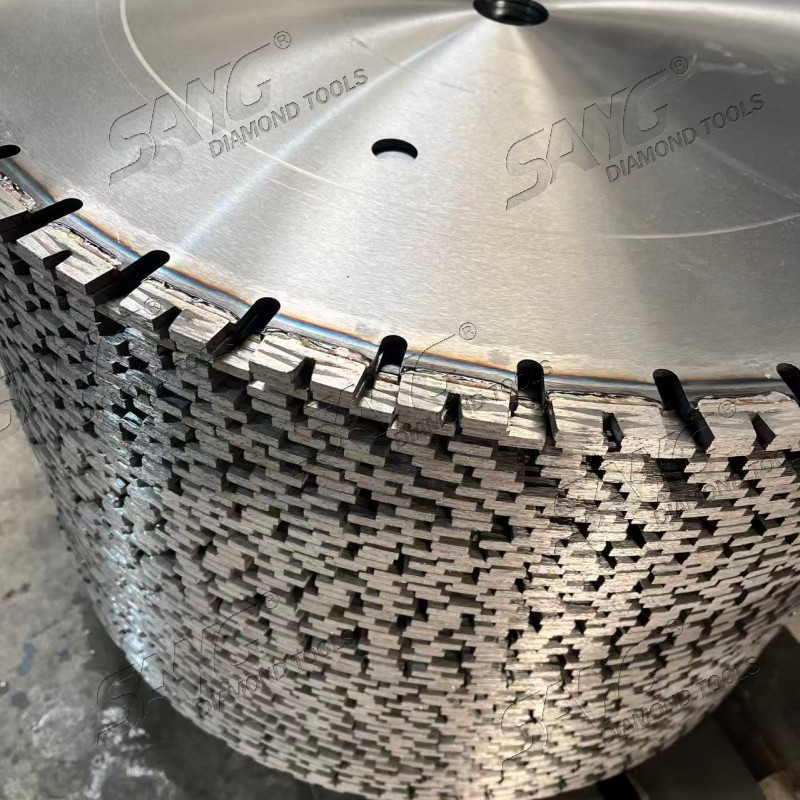

2) V-Shaped Stepped Segment Design–Enhanced Debris Removal and Heat Dissipation

The unique V-shaped stepped design creates multiple cutting surfaces during operation, distributing pressure points and ensuring smoother blade entry. Simultaneously, the wide water channels allow for rapid removal of cutting debris, effectively reducing heat buildup caused by secondary friction from residual particles.

In continuous cutting operations, the blade segment temperature can be about 25% lower than traditional designs [based on customer tests], significantly minimizing the risk of blade overheating while delivering a smoother and cleaner finish that reduces the need for subsequent processing.

3) High-Precision Laser Welding Technology

SANG utilizes advanced laser welding technology, where a high-energy laser beam creates a strong, uniform bond between the segment and the steel core. This enables the blade to withstand intense impact and thermal stress, eliminating the risk of segment detachment during high-speed operation.

User Testimonial:

An engineer overseeing an overseas nickel-iron project shared:

“We ran three shifts cutting bricks under tight deadlines. Only SANG blades held up—no segments lost, no cores cracked. That reliability saved our schedule.”

2.Quantifiable Benefits

3.Application Scenarios & Real Customer Feedback

1) Application Scenarios

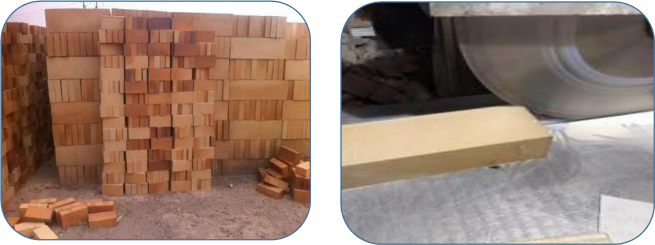

*Cutting hard refractory materials such as magnesia-calcia bricks and high-alumina bricks during kiln construction and maintenance;

* Custom sizing of refractory bricks at manufacturing plants;

* Quick and precise dismantling of industrial equipment containing refractory bricks.

2) Real Customer Case

Since 2019, we have entered the supply chain of a Fortune 500 enterprise — a leading holdings group, and continue to provide products for its global production bases, including its Indonesia nickel‑iron division. On‑site feedback directly attests to the outstanding performance of our blades:

“After switching tothe SANG V‑shaped segment saw blade, our cutting output doubled. It cuts clean and smooth, runs cool even after hours of use, and truly delivers efficiency and savings.”

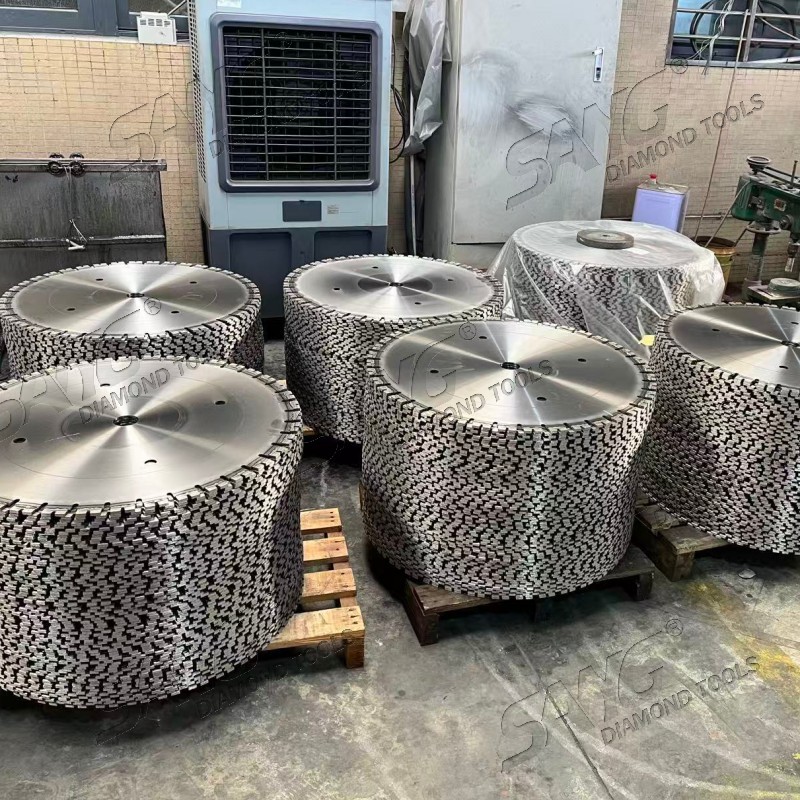

Models in Batch Application:

The models D500*50*40*4.2*15mm and D700*50*40*6/5.4*15mm have been procured in large volumes, confirming their reliability and cost‑effectiveness.
