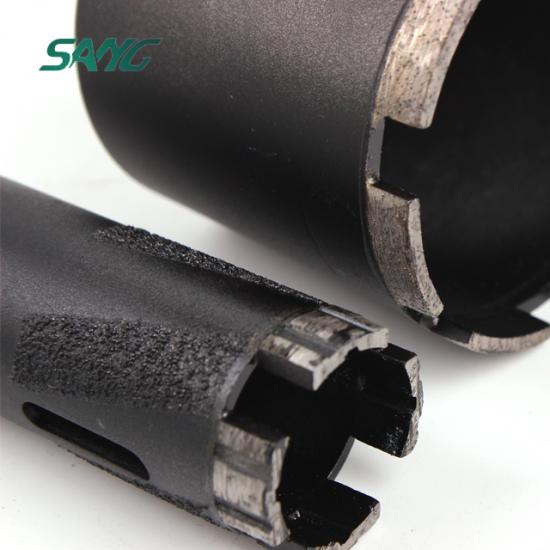

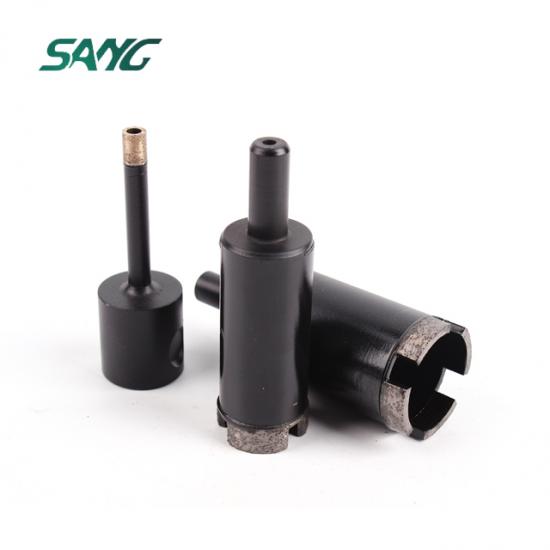

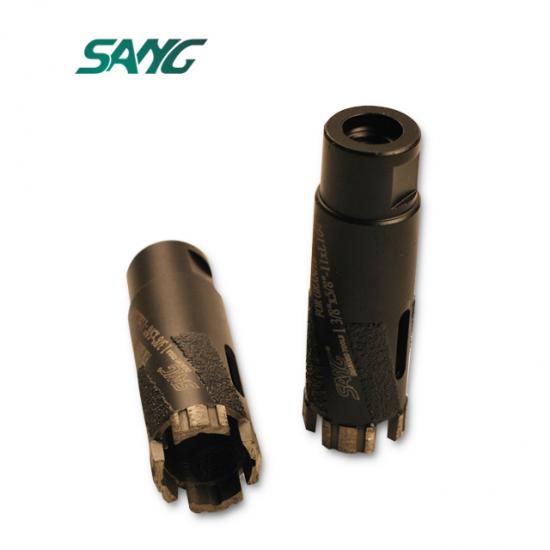

Universal Wet Vacuum Brazed Diamond Drilling Core Bits 6mm Diamond Core Drill Bit For Granite Diamond Drill Bit Core

Universal wet drilling core bits are used for drillling machines.

  • Brand:

    SANG

  • Item No.:

    SG

  • Price:

    $18.69/pcs

  • Product origin:

    Fujian,China

  • Color:

    Regular

  • Shipping port:

    Xiamen,Guangzhou Port

  • Lead Time:

    7-20days after payment

  • Hole Size:

    by requirement

  • Service:

    OEM,ODM,Visualization Service

  • MOQ:

    20pcs
  • Product Details

Product Description:

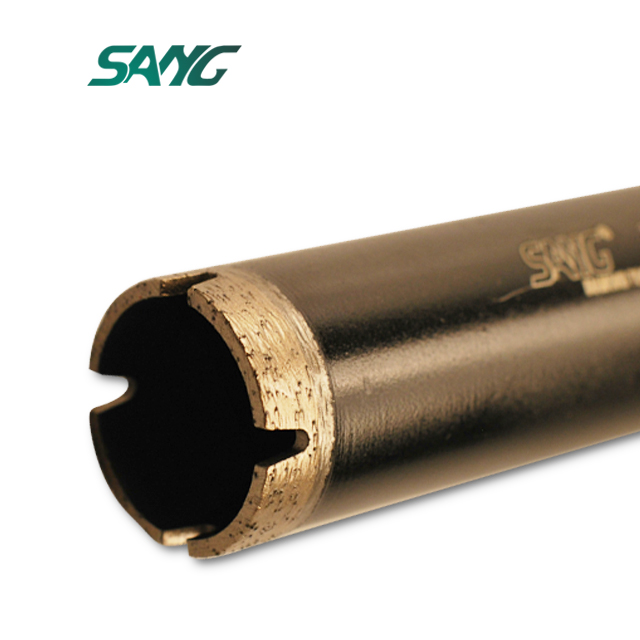

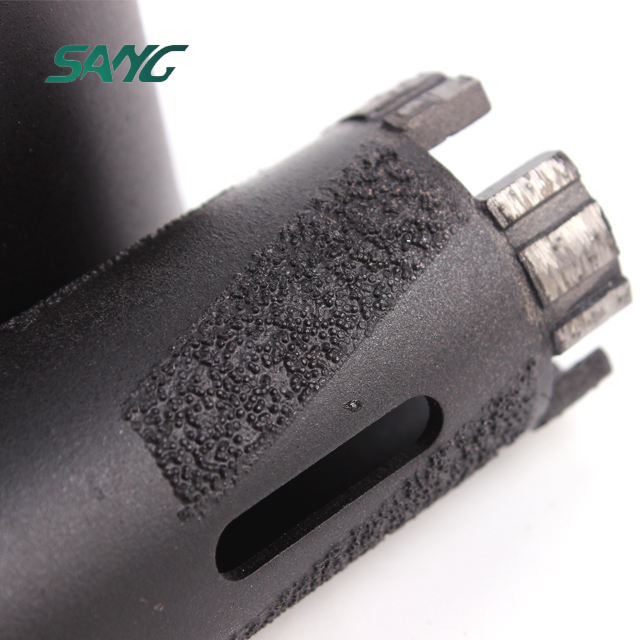

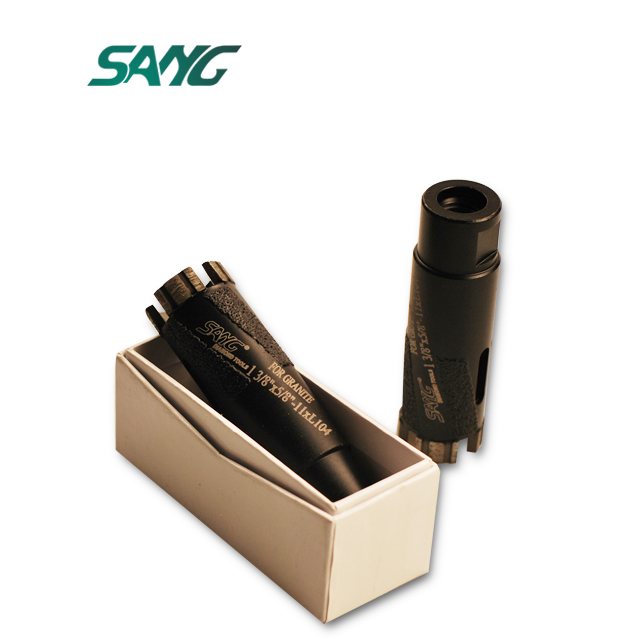

diamond core drill bitscore drill bits

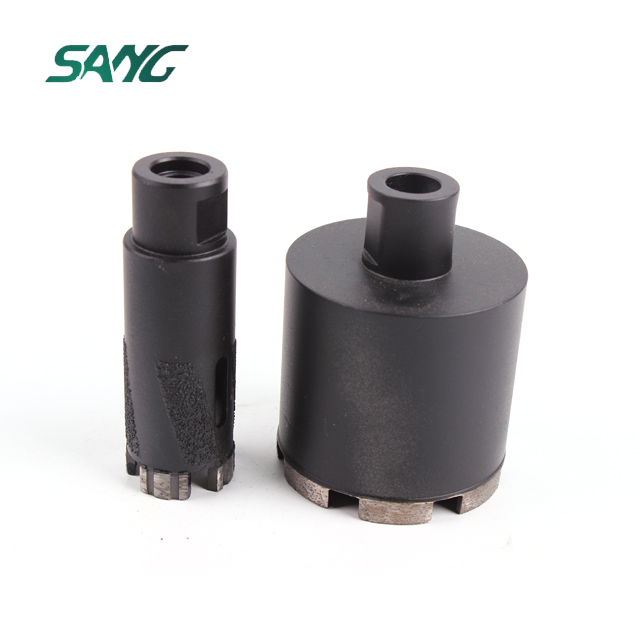

core drill bitdiamond drill bits


Product Information:

Item No. Diameter(mm) Working Length(mm) Segment Dimension(mm)





L W H Quantity
SGCB-T6 6 30,50 column
10 1
SGCB-T8 8 60 column
10
 1
SGCB-T10
 10 60 column
10
 1
SGCB-T12
 12 60 column
10
 1
SGCB-T14
 14 60 column
10
 1
SGCB-T16
 16 60 column
10
 1
SGCB-T18
 18 60 column
10
 1
SGCD-R20
 20 75/100/150/200/400
 ring 3.0 10
 1
SGCD-R26
 26 ring 3.0
 10
 1
SGCD-R32
 32 ring 3.0
 10
 1
SGCD-R36
 36 ring 3.0
 10
 1
SGCD-S42
 42 23/19.7 3.0
 10
 4
SGCD-S52
 52 23/20 3.5
 10
 5
SGCD-S62
 62 24 3.5 10
 5
SGCD-S82
 82 24 4.0 10
 7
SGCD-S102
 102 24
 4.0 10
 9
SGCD-S112
 112 24
 4.0
 10
 9
SGCD-S132
 132 24
 4.0
 10
 10
SGCD-S152
 152 24
 4.0
 10
 12
SGCD-S178
 178 24
 4.5
 10
 13
Our Advantage:
E6 diamond powder


Product Packing:

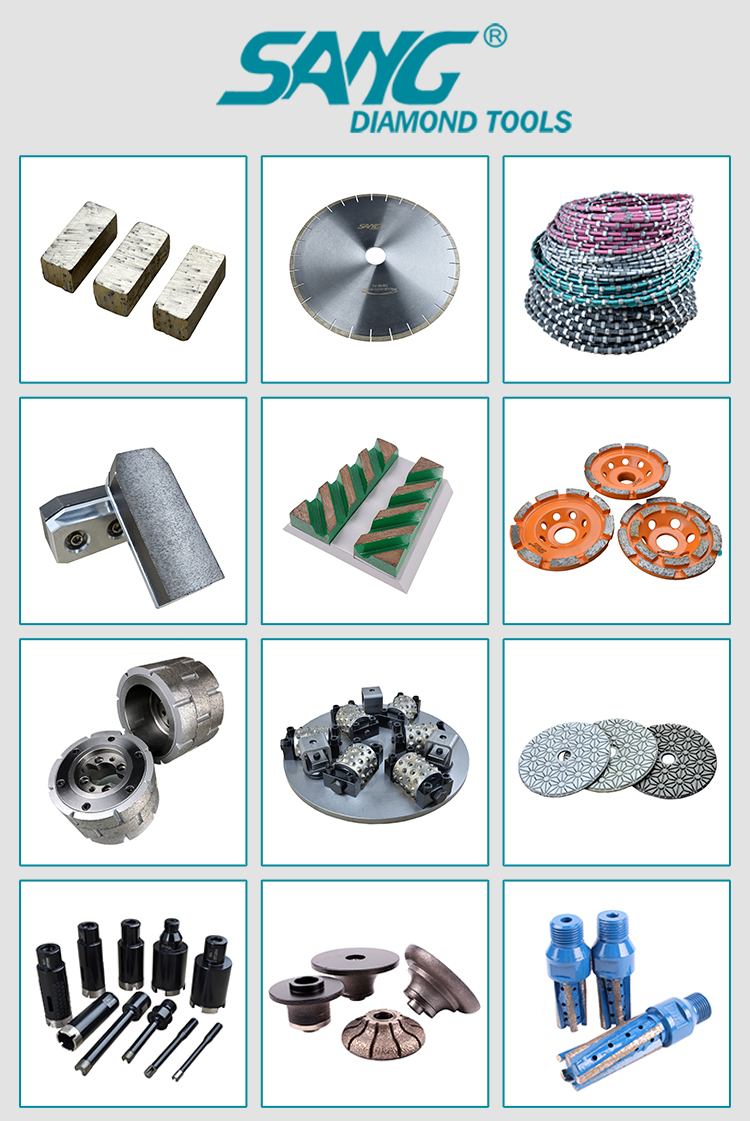

Recommend Product:


stone tools

Company Information:


FAQ:

1.Are you a manufacturer or trading company?
We are a 26 years manufacturer.
2.How to prove your quality?
We use E6 diamond,Dipea steel wire, passed ISO9001 and SGS,strict quality control and skilled workers.
3.What should I do if the products is not suitable for the market?
Giving us the detailed report first,then we analyze the reason,try to find the solutions.
If it is our problems,we will give you new products.
4.Do you provide free samples?
Small sample is welcomed.But,usually we don't provide free samples.
5.Can you provide OEM/OEM services?
It is ok.
