crown roof type diamond core bit segment for reinforced concrete

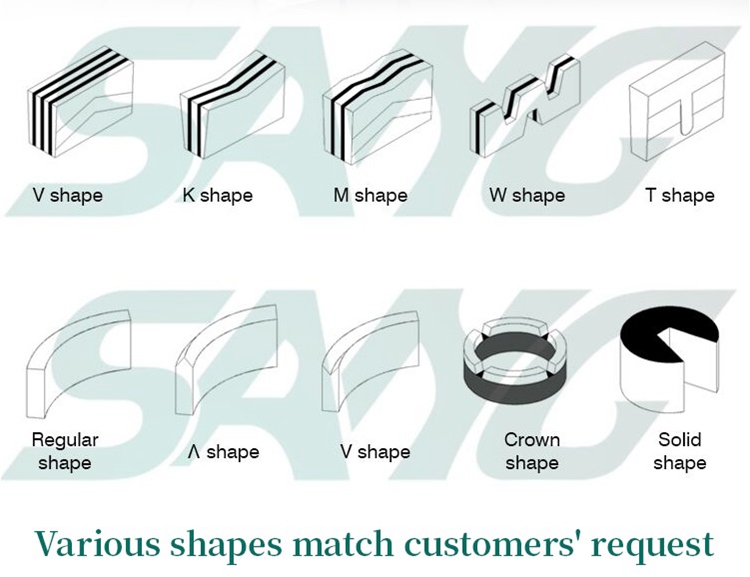

we have various types to match your request.

Brand:
SANG
Payment:
TT 100%
Product origin:
Quanzhou,Fujian ,China
Color:
Regular
Shipping port:
Xiamen or Guangzhou
Lead Time:
7

Contact now

Product Details

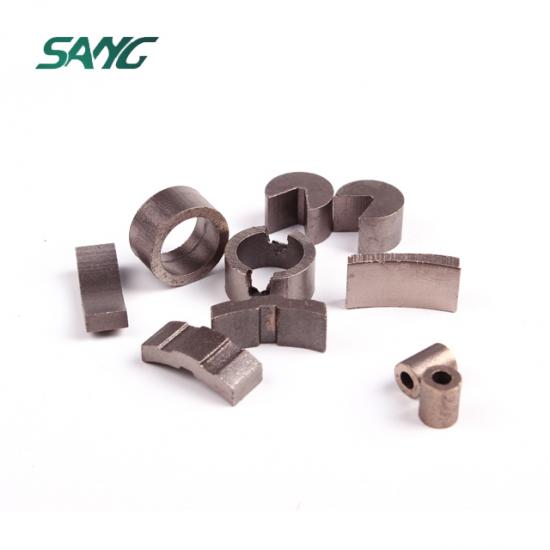

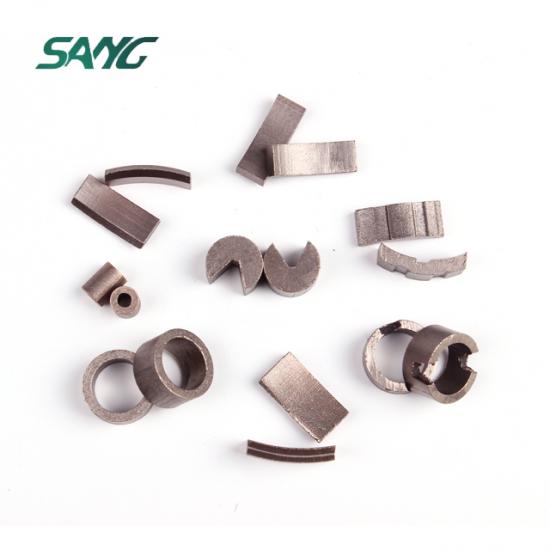

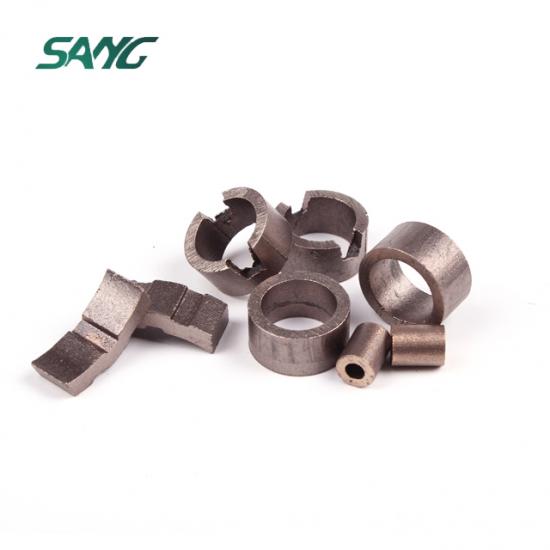

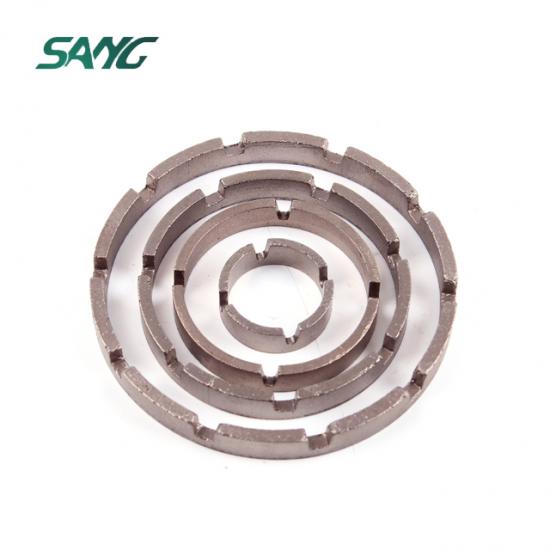

crown roof type diamond core bit segment for reinforced concrete

For drilling reinforced concrete, asphalt, brick and air-cured refractories.

Item No.	Diameter (mm)	Working Length (mm)	Segment Dimension (mm)
Item No.	Diameter (mm)	Working Length (mm)	L	W	H	Quantity
SGCD-R32-G	32	70 / 300 / 360 / 400 / 450 / 500 / 550	ring	3.0	10	1
SGCD-R42-G	42		23/19.7	3.0	10	4
SGCD-S52-G	52		23/20	3.5	10	5
SGCD-S62-G	62		24	3.5	10	5
SGCD-S68-G	68		24	3.5	10	6
SGCD-S72-G	72		24	4.0	10	6
SGCD-S82-G	82		24	4.0	10	7
SGCD-S92-G	92		24	4.0	10	8
SGCD-S102-G	102		24	4.0	10	9
SGCD-S112-G	112		24	4.0	10	9
SGCD-S132-G	132		24	4.0	10	10
SGCD-S152-G	152		24	4.0	10	12
SGCD-S162-G	162		24	4.0	10	12
SGCD-S172-G	172		24	4.0	10	13
SGCD-S182-G	182		24	4.0	10	13
SGCD-S202-G	202		24	4.0	10	14
SGCD-S220-G	220		24	4.5	10	15
SGCD-S250-G	250		24	4.5	10	20
SGCD-S275-G	275		24	4.5	10	22
SGCD-S302-G	302		24	4.5	10	24
SGCD-S320-G	320		24	4.5	10	24
SGCD-S350-G	350		24	4.5	10	24
SGCD-S400-G	400		24	4.5	10	30
SGCD-S450-G	450		24	5.0	10	30
SGCD-S500-G	500		24	5.0	10	30
SGCD-S600-G	600		24	5.0	10	30
Above data is used for reference; Other size on request available.

Allen

0086-15906067857

[email protected]

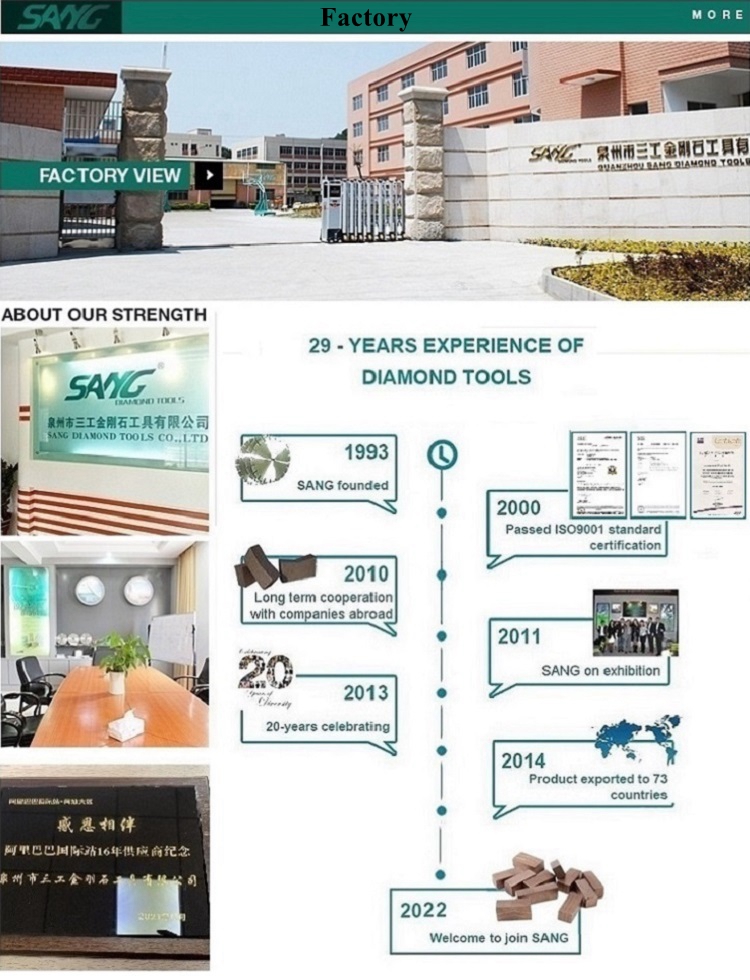

1.Are you a manufacturer or trading company?

     We are a 25 years manufacturer.
2.How to prove your quality?
     We use E6 diamond,Dipea steel wire, passed ISO9001 and SGS,strict quality control and skilled workers.
3.What should I do if the products is not suitable for the market?
    Giving us the detailed report first,then we analyze the reason,try to find the solutions.
     If it is our problems,we will give you new products.
4.Do you provide free samples?
   Small sample is welcomed.But,usually we don't provide free samples.
5.Can you provide OEM/OEM services?
    It is ok.
6.Any question about turbo shape diamond core bit segments for concrete reinforced concrete,please kindly let me know!Thanks!
